  Main body : Cast aluminum alloy
Globe : Heat resisting borosillicate glass
Guard : Steel
Gong : Brass
Terminal Box : Cast iron
Pole : Steel pipe
Base :Cast iron






Source of Supply Type Rated Voltage Catalogue No Weight (kg)
Integral Battery
Wall Mounting
 4.5V DC FAS 10 7.2
Stamding
 4.5V DC FAS 11 16
Mains Supply
 반사경 소형 100V AC FAS 12 7
전면유리 200V AC FAS 13
소켓트 100V AC FAS 14 15.7
전 구 200V AC FAS 15

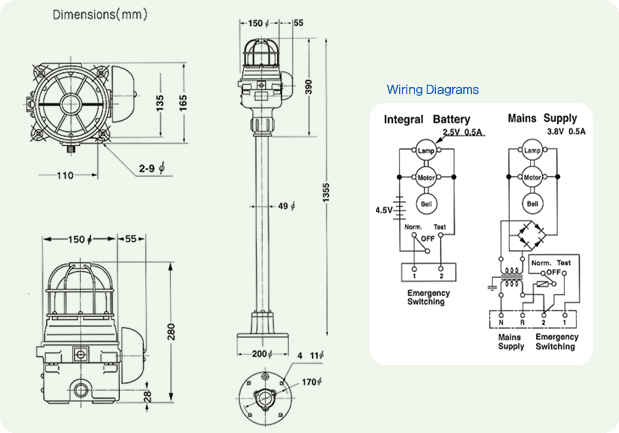

Conduit entry(Wall Mounting Type)- Terminal or through-way28(1")max. Specify position and size when ordering.




. Integral battery type Mains supply type
Rated voltage
4.5V DC
 100 or 200V AC
Lamp(flashlight lamp)
2.5V 0.5A
 3.8V 0.5A
Sound level of bell (at 1m)
 93dB or more 94dB or more
Number of flashings
 150/min 180min
